DESCRIPTION

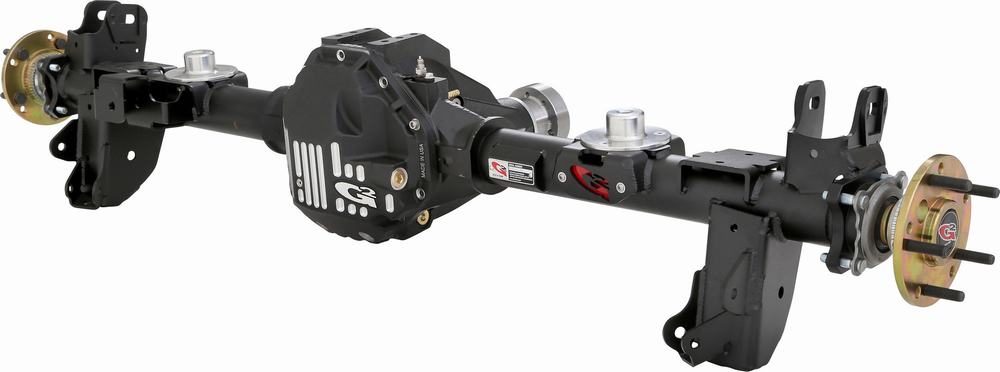

4x4Proyect is proud to introduce their new CORE 44 axle housing for 2007 and up Jeep JK Wranglers. Utilizing the strongest and latest generation high pinion Dana 44 gear design, G2 have developed a whole new housing to handle the heavy loads that would normally bend a stock Dana 30 or Rubicon Dana 44. The CORE 44 will accept stock Dana 44 ring and pinions, axle shafts, and all aftermarket lockers. The CORE 44 features a unique Adjuster Nut System to easily set backlash and carrier pre-load. The CORE 44 includes heavy duty forged inner C ends, and 3" x .250" wall tubing to resist bending in even the most extreme conditions. All CORE 44 brackets are laser cut and CNC formed from 3/8" steel for added strength, and are designed to allow bolt-in installation.

FEATURES

Since many years ago www.4x4proyect.com import the famous Axle Assemblie from Bestop Manufacturing, the part number, G2-C4JSR488TP0 Axle Assemblie fit on For Jeep Wrangler Jk all models years 2007 to 2017
Massive forged inner C-end
Integrated skid plates on lower control arm mount
Heavy-duty 1/4 inch laser cut brackets
Heavy duty 3inch diameter 5/16inch DOM tubes
Reinforcing ribs for added strength and protection
Heavy duty forged bearing caps
Spanner nuts for backlash adjustment
Heat-treated aluminum diff cover with cooling fins
Utilizes new generation JK 44 ring & pinion
