Old Man Emu CS030R or OMENN1 Dakar Leaf Spring

OLD MAN EMU (OME)
-22%

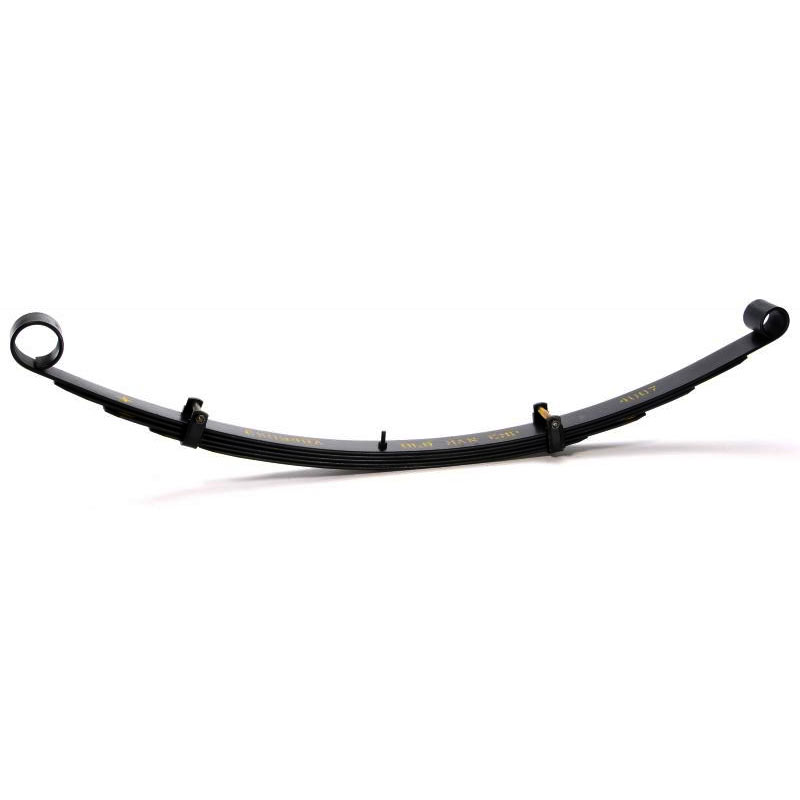

Old Man Emu CS030R or OMENN1 Dakar Leaf Spring

For Nissan Navara D21 / Hardbody Pick Up 1986-1997, Navara D22 1997-2002, Rear

CS-030R | OLD MAN EMU (OME)

For Nissan Navara D21 / Hardbody Pick Up 1986-1997, Navara D22 1997-2002, Rear

CS-030R | OLD MAN EMU (OME)
In Stock

DELIVERY IN : 24H/48H In Stock. Ready for immediate dispatch.

Shipping in :

Different destinations : Chose and add your product

* If there are more products in the basket, the transport price will be adjusted to the products from the basket.

-22%
374.5€
292.58€
Taxes 21% incl.
Taxes 21% included
Amount of lift: 30mmPosition: Rear
Number of leaves: 3 + 3Front eye diameter: 40mm
Rear eye diameter: 32.5mm Primary free camber: 170mm
Spring rate: Progresive 126-531 Lbs/inch
DESCRIPTION
Part of ARB's integrated 4x4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under.
Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4x4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
FEATURES
  • Draw tapered and diamond cut leaves:Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
  • Bolt clamps and liners:The leaf clamps are bolted to allow installation of anti squeak nylon liners.
  • Fully scragged and load tested: Scragging ensures the spring takes a permanent ‘set’ which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
  • Military wrap: Designed to provide added safety.
  • Anti friction pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
  • Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life.
  • Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
  • Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.
  • price by unit
MakeModelYear RangeEngine TypeTrim

NissanNavara D211986 - 1997Todos los modelos
NissanNavara D221997 - 2002Todos los modelos
