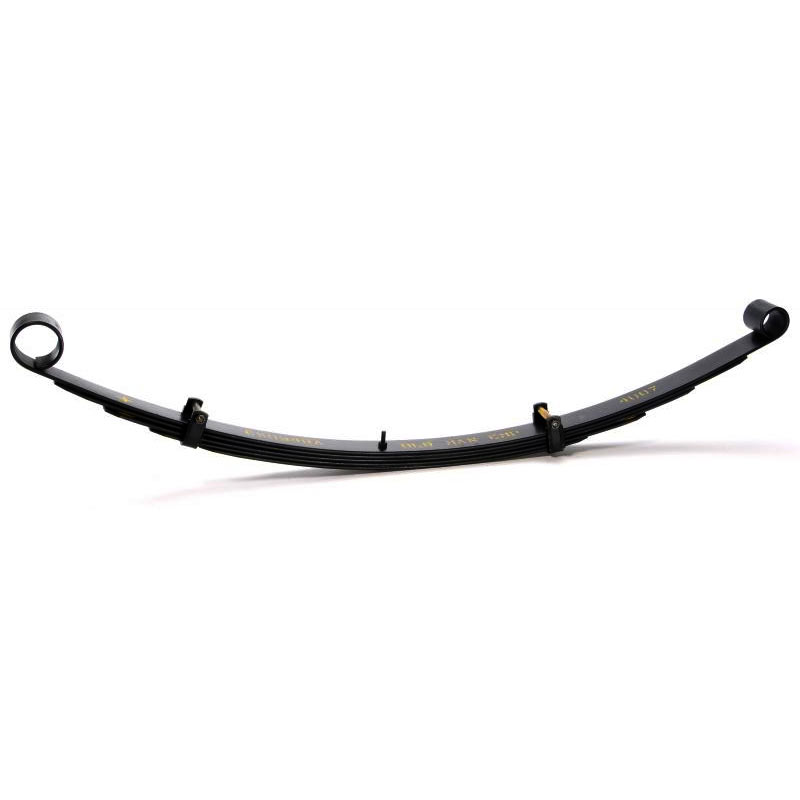

Name: Old Man Emu CS035RB or OMEJC2B Dakar Leaf Spring
Brand: OLD MAN EMU (OME)
SKU: CS-035RB
Price: 289.38 EUR
Availability: InStock

Filters:

Group / Suspension Components And Kits
Remove

Section / Suspension Components
Remove

Part Type / Leaf Spring
Remove

Go Back to the Results List

DESCRIPTION

Part of ARB's integrated 4x4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under.
Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4x4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.

REF: 9332018022974

FEATURES

Draw tapered and diamond cut leaves:Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
Bolt clamps and liners:The leaf clamps are bolted to allow installation of anti squeak nylon liners.
Fully scragged and load tested: Scragging ensures the spring takes a permanent set which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
Military wrap: Designed to provide added safety.
Anti friction pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life.
Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.
price by unit

Make	Model	Year Range	Engine Type	Trim

Jeep	Cherokee Xj	1984 - 2001		Todos los modelos

Related products

-22%

Old Man Emu Cs017ra Or Ome221a Dakar Leaf Spring

For Toyota Landcruiser 60 Series 1980-1990,...... See more

Old Man Emu (ome) | CS-017RA

Teraflex 4959161 Swaybar

DANA 60 SWAYBAR MOUNT LH... See more

Teraflex | 4959161

-22%

Old Man Emu Cs001r Or Ome14 Dakar Leaf Spring

For Toyota Landcruiser 40 Series 1960-1985... See more

Old Man Emu (ome) | CS-001R

-22%

Old Man Emu Cs004f Or Ome11 Dakar Leaf Spring

For Nissan Patrol GQ GRY60 1987-1997 4.2, Toyota...... See more

Old Man Emu (ome) | CS-004F

Rubicon Express Re1158 Sway-bar Links

Sway Bar End Links For Jeep Wrangler Jk 2.5" Rear...... See more

Rubicon Express | RE1158


Amount of lift: 50mm	Position: Rear
Number of leaves: 4 + 1	Front eye diameter: 62mm
Rear eye diameter: 43.5mm	Primary free camber: 210mm
Spring rate: Progresive 137-257 Lbs/inch

Old Man Emu CS035RB or OMEJC2B Dakar Leaf Spring

For Jeep Cherokee Xj 1984-2001, Rear

For Jeep Cherokee Xj 1984-2001, Rear
