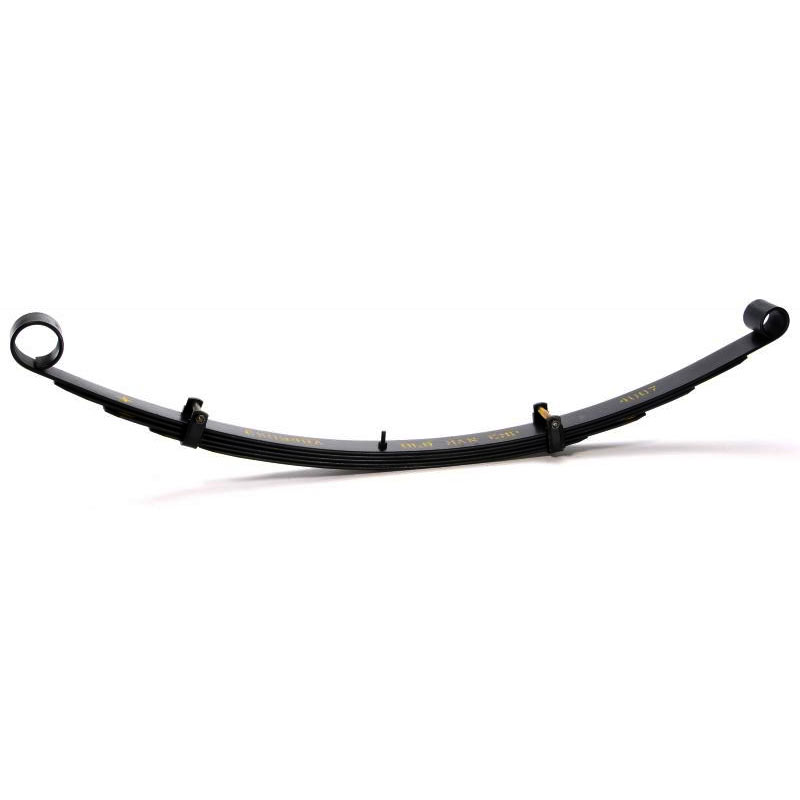

Name: Old Man Emu CS043R Dakar Leaf Spring
Brand: OLD MAN EMU (OME)
SKU: CS-043R
Price: 342.97 EUR
Availability: InStock

Filters:

Group / Suspension Components And Kits
Remove

Section / Suspension Components
Remove

Part Type / Leaf Spring
Remove

Backspacing / 6.25"
Remove

Width / 8
Remove

Go Back to the Results List

DESCRIPTION

Part of ARB's integrated 4x4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under.
Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4x4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.

FEATURES

Draw tapered and diamond cut leaves:Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
Bolt clamps and liners:The leaf clamps are bolted to allow installation of anti squeak nylon liners.
Fully scragged and load tested: Scragging ensures the spring takes a permanent set which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
Military wrap: Designed to provide added safety.
Anti friction pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life.
Shot peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.
price by unit

Make	Model	Year Range	Engine Type	Trim

Toyota	Hilux-Tiger-Vigo	2005 - 2016		Todos los modelos
